Nissan Skyline (1987-1989) R31, 1/87-12/89, GTS 2.0 Ltr Turbo, RB20DET-R, 141kw Mantic Stage, Stage 1 Clutch Kit – MS1-1938-BX

SKU: MS1-1938-BX

Stage 1 / ER2 organic

This clutch kit is specifically designed for the street performance market. The high torque capacity cover assembly’s pressure plate is manufactured from Spheroidal Graphite casting material, which has a yield strength 300% higher than standard castings. The materials microstructure also improves heat dispersion. In addition, the Mantic Stage 1 features our patented groove design, ER², CNC machined on the friction face of the pressure plate. Our stage 1 clutch system is capable of transmitting more torque than a standard clutch kit. This overall torque capacity increase has been achieved via higher clamp loads, increased Mean Effective Radius courtesy of the ER² designed pressure plate, improved heat displacement and use of a high coeffcient of friction organic material on the clutch disc. The clutch disc features organic facing material of both sides of the clutch disc making the stage one clutch system the most driver friendly option in our range.

Features & Benefits

• Mantic Patented ER2 High Torque SGI Cover Assembly
• Organic Clutch Plate
• 1 Year / 20,000KM Warranty





Clutch Plate Dimensions

240 x 24T x 25.5

Dual Mass Flywheel

Not Included

Solid Flywheel

Not Included

Concentric Slave Cylinder

Not Included

Torque Capcity

Peak: 620Nm, Recommended: 434Nm

Flywheel Spec

Flat

Spigot

RSB520

Alignment Tool

CAT120

More Information

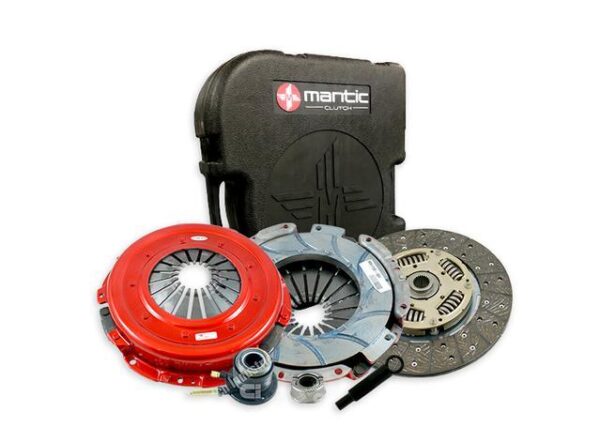

This kit includes : MANTIC ER2 Heavy Duty Cover Assembly, Clutch plate, Release bearing , Clutch Alignment Tool, Spigot Bearing
